Attractor Functions

Posted on | ~2mins
P5JS Development Attractor Functions

I recently discovered p5js that takes all the hardwork out of rendering on canvas and allows you to focus on the functional part of the application. As an experiment, I decided to investigate attractor functions.

I do not understand the mathematics of attractors to great extent and therefore I am unable to dig into the details but roughly speaking an attractor function defines a set of states towards which the system will tend to evolve.

These functions are defined as a set of equations in n number of dimensions. The functions also define parameters which determine the - to put it in very non-technical terms - state the system will tend towards.

Clifford Attractor

The first attractor I tried was Clifford attractor, mainly for it’s simplicity.

//a, b, c & d are the function parameters
// xn & yn are the value from previous iteration

x = sin(a * yn) + c * cos(a * xn)
y = sin(b * xn) + d * cos(b * yn)

I ran it for 10 million points with each point iterated 5 times using the Clifford attractor.

Image showing clifford attractor function rendered using points

Jason Rampe Attractor

Jason Rampe was is an iteration on Cifford function using the same dimensions and similar number of parameters.

//a, b, c & d are the function parameters
// xn & yn are the value from previous iteration

x = cos(b * yn) + c * sin(b * xn)
y = cos(a * xn) + d * sin(a * yn)

I ran it for 10 million points with each point iterated 5 times using the Jason Rampe attractor.

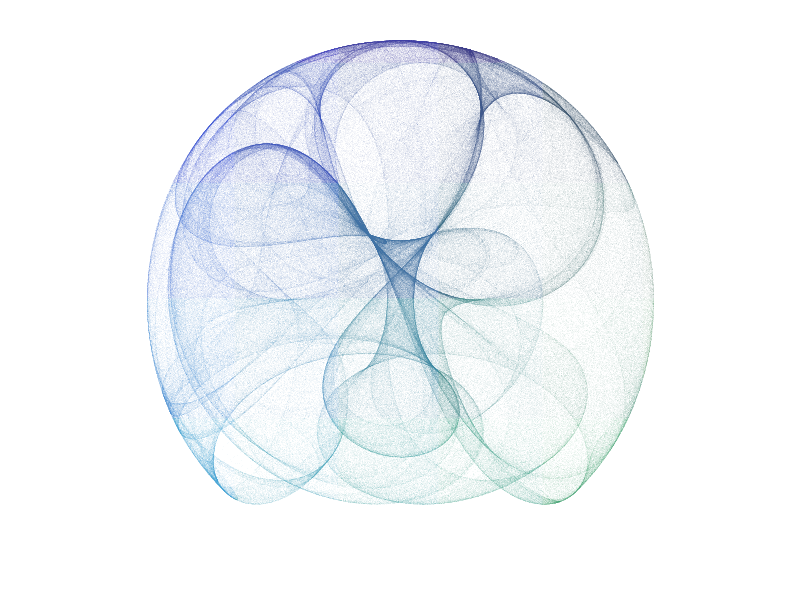

Image showing Jason Rampe attractor function rendered using points
